By shadowbane900

December 17, 2020, 4:51 am

More decimal places

Is it possible to have the speeds and feeds section to list more decimal places for the feed. I am using the android app

Answers:
cant leave messages here
Pages:(1) [1]
avatar

Eldar Gerfanov (Admin)

December 22, 2020, 10:46 am

Hello,

What is your use case?

GCode spec is stating that your feed rate can have just 2 digits after the decimal point.

So even if your CAM system allows you to enter 3 or more digits, it will VELY likely be rounded down to just 2 anyway.

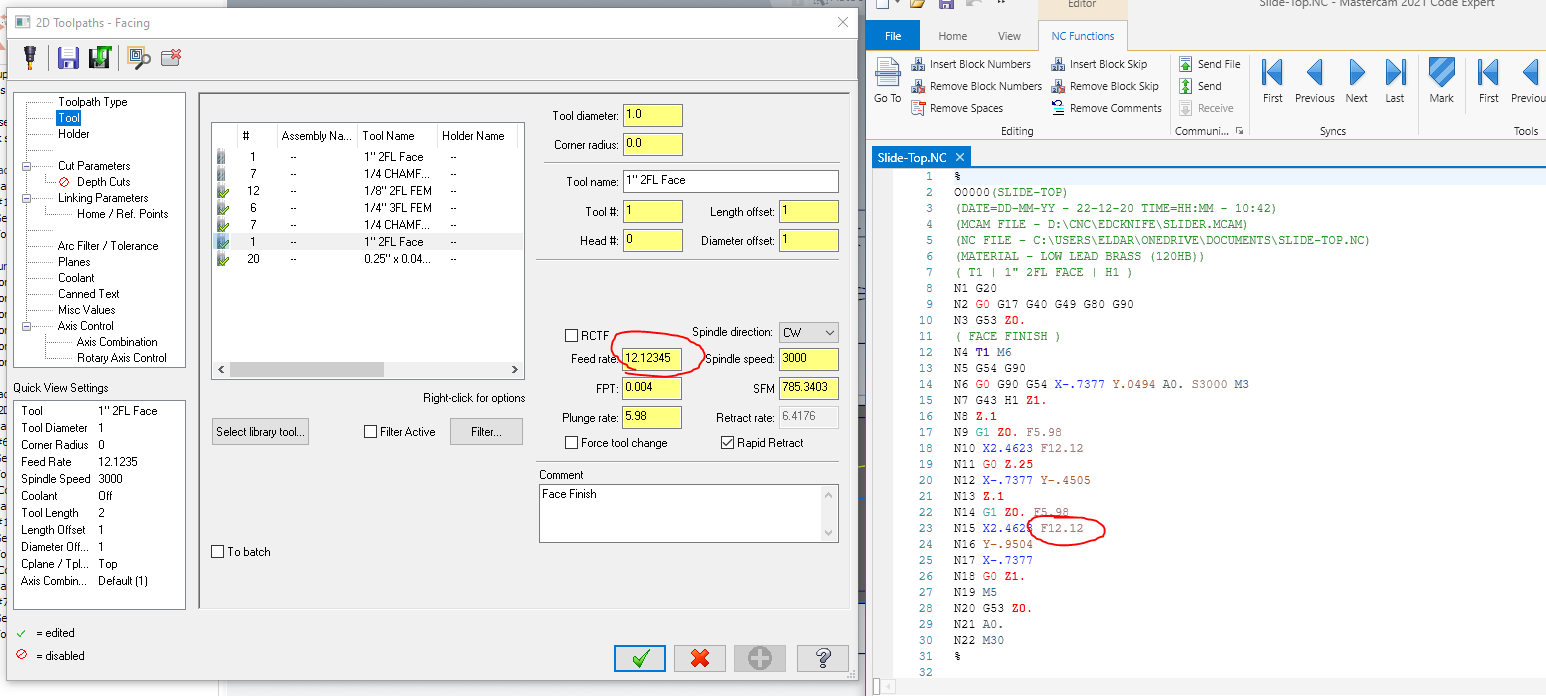

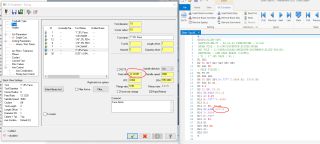

See screenshot:

screenshot FeedRateRounding.PNG
